Power Input: 3‑phase, ~200 VAC
Motor Output Power: Typically around 0.5 – 4 kW (with the “‑40” indicating ~400 W rating, though may vary by specific variant)
Output Current: Matches motor capacity (e.g., ~2–10 A typical for this range)

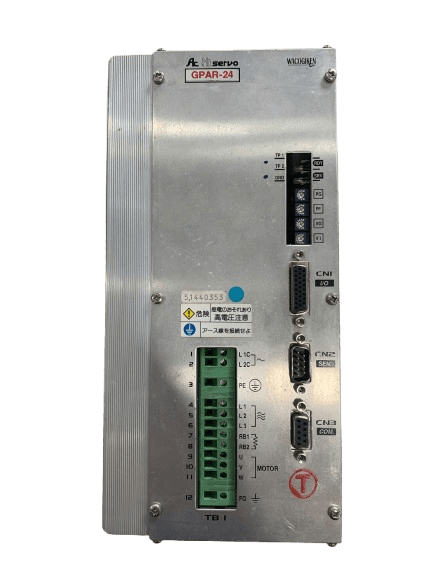

Feedback Interface: Supports serial (SEM) encoder via CN2 connector
I/O & Comms:
CN1: Digital I/O
CN3: Communication (e.g., RS‑232/RS‑485)
Braking Resistor Terminals: RB1, RB2 on TB1

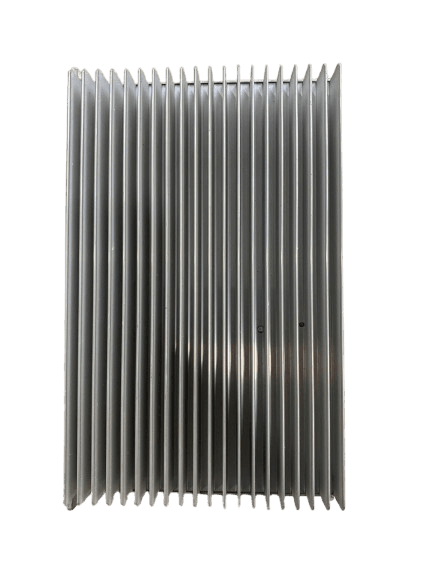

Cooling Method: Forced air or cold‑plate; vertically mounted with adequate spacing
- Mounting Orientation: Vertical installation preferred; ensure ≥10 – 50 mm clearance for airflow
Environmental Conditions:
Operating temp: 0 – 50 °C (derated above 40 °C)
Humidity: up to 95% non-condensing
Automation Systems, Yaskawa
Yaskawa AC Servo Pack GPAR-40
Manufacturer: Yaskawa Electric (formerly Wacogiken)
Model: GPAR‑40 (sometimes marked as GPAR‑40NTS / GPAR‑40NB1‑A)
Type: AC Hi-Servo Drive (AC Servo Pack)
Designed as a compact, high-performance servo amplifier for precision control applications in factory automation, packaging, printing, and more
