Product Description:

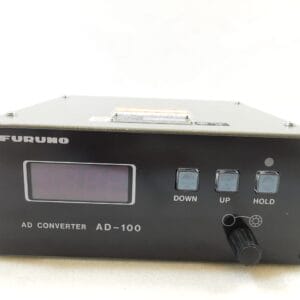

Furuno AD Converter AD-100
Type: AD-100.
The AD-100 Converter converters the gyro compass reading into digital coded bearing data and display it on a 4 digit LED display.
The digital bearing output may be sent to navigation equipment such as radar, GPS navigator and autopilot.
Specification:
Inputs:
– Gyro repeater signal (AC Synchro, DC Synchro or Step by Step) DIP switch provided to select input signal.
– AC Synchro Type (20-135VAC: Rotor; 20-135VAC: Stator; 50/60Hz, 400Hz or 500Hz).
– DC Synchro Type (20-100VDC: Rotor; 20-100VDC: Stator).
– Step by step: 20-100VDC.
Output:
– AD-10S format: Switchable 25ms and 200ms. Use 25ms for radar only.
– NMEA0183: HDT, VHW RS-485 level version. 1.5 and 2.0
Baud Rate:
– 4800 and 38,400bps.
